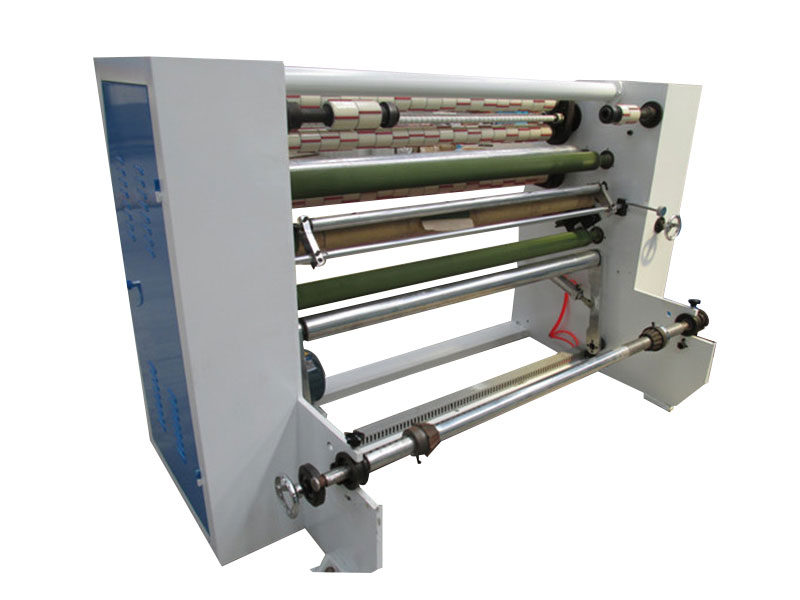

Product Description
1. Control of all parts of machine,centralized control panel left and right, easy of operate.
2. Advanced three – section length count to ensure exact coiling length.
3. When the machine stops, the tape can be stopped instantly.
4. The expansion wheel is a unique bow design, Completely eliminaye the tape in the process of expanding or feeding wrinkle.
5. After the crimping operation is completed, the two shafts are antomatically exchanged, easy to operate and high efficiency.
Main Technical Parameters:
| Effective working width | 1000mm | 500mm |
| Size | 2050*1200*1400mm | 1630*1220*1260mm |
| Speed | 0-180m/min | 0-180m/min |
| Core diameter | φ25.4mm | φ25.4mm |
| Mini slitting width | 6mm | 6mm |
| Max unwinding diameter | 700 | 700 |
